Project Description
ATSC 3.0 Set-top Box [LSA 3200]
Set-top box capable of receiving ATSC 3.0 broadcasting
Features
RF Input : Terrestrial 54MHz~806MHz
Input format : ATSC 3.0 (ROUTE, MMTP)
Interface : RF / HDMI 2.0 / Ethernet
Powered by external adapter
Receive the ATSC 3.0 channels and output AV data through HDMI for 4K display
Specifications
| Category | Functions | Specifications |
|---|---|---|
| Product Type | ATSC 3.0 STB | Android OS |
| Main SoC | Octa-Core ARM Cortex-A53 CPU | 27,600DMIPS up to 1.5GHz |
| Front-end | Terrestrial Tuner | 54MHz~806MHz |
| I/O | Video / Audio output USB SD card (SDXC) |
HDMI 2.0 / Analog AV (optional) USB 2.0 (Type A) x 2 Micro SD Type |
| RF Input | Type F | 75Ω |
| Network | Wireless
Ethernet port (RJ45) |
WiFi : IEEE802. 11 a/b/g/n/ac(2.4Ghz/5Ghz) 10/100/1000 Mbps |
| User Control | Remote Controller | IR |
| Memory | Flash Rom RAM |
8GB eMMC 2GB DDR3 |
| Power Supply | AC Adapter | 12V DC/2A |
| Status Display | Dual LED | Power Status (Red/Blue) |
| Size | W x L x H | 120 x 110 x 25 (mm) |

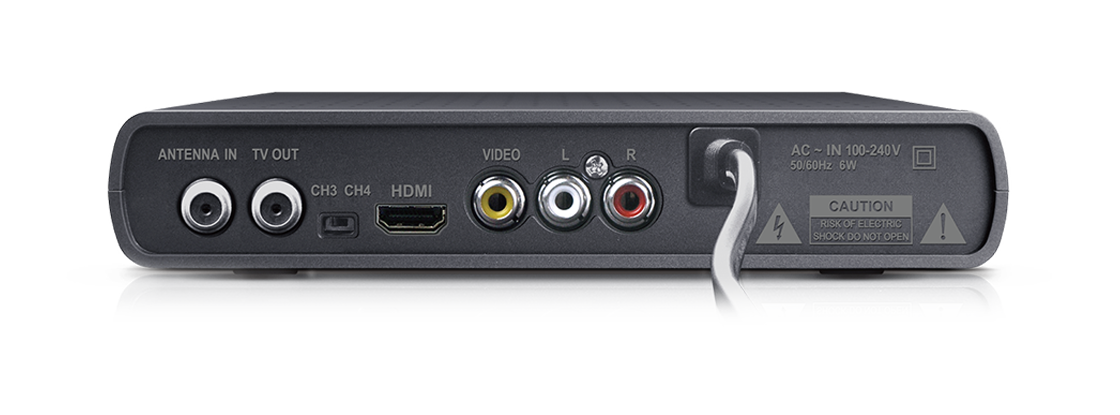

I/O Interface
